No after-sales service, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, No overseas service provided
Soldering Iron Temp:
Air Temperature range:
Blue and yellow
Amount Of Wind:
Handle length(with Cable):
1200 Piece/Pieces per Week
Packaging & Delivery

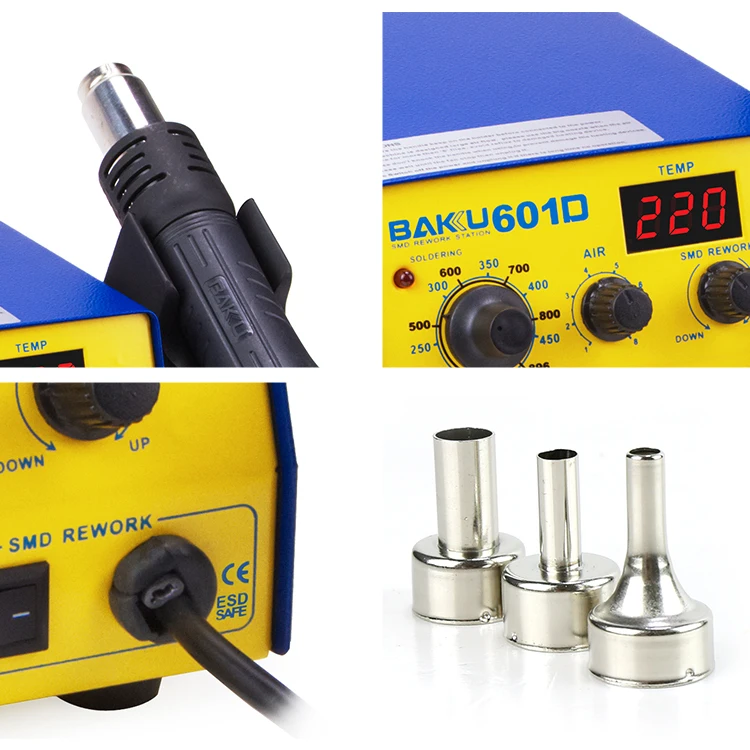

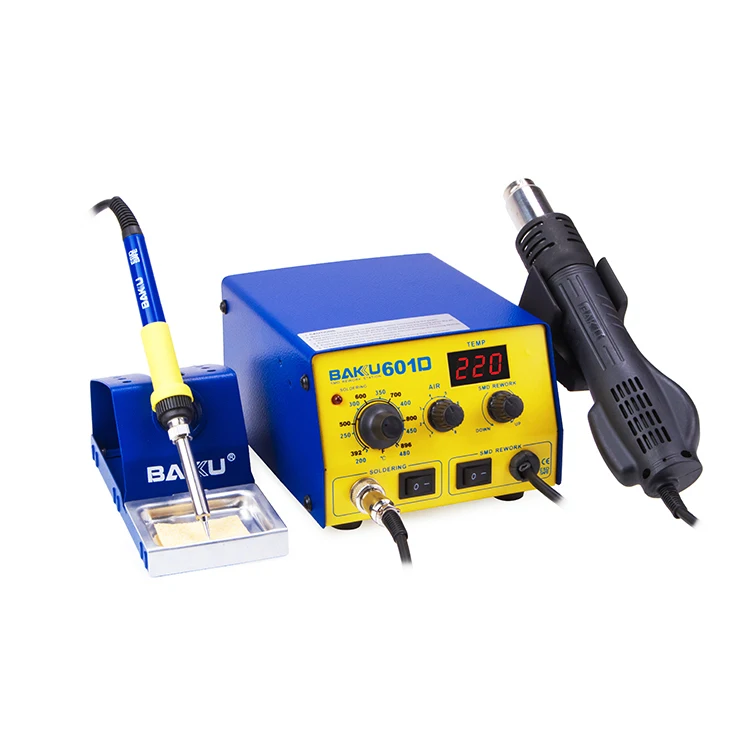

BAKU Hot Products Digital Display Smd Rework Soldering Station 2 in 1 BK601D
LED indicator light
LED digital display
Amount of Wind
1.The products adopt closed loop of transducer with Mcu intelligent drive,Digital LED display and High-power.The temperature turn up is very fast and stable ,it is good for lead free work too.
2.The air flow can be adjustable,and air blowing is big and gentle, plastic components won't be deformed .Such as buzzer and external interface of mobile phone
3.It is inductance in the handle.will be quickly to work when you take the handle,when the handle is return to the shelf,the machine will Automatic stopage.
4.Automatic to blow cool air to safe the heating.Temperature rapidly rises,and it can reach to the setting temperature only within 3 or 5 seconds.
5.Safety remove BGA-IC,Keep pins intact.Blowing PCB will not make it blister.
1.To put the unsoldering equipment ready,and leave handle on the holder
2.To connect the power
3.To set the best nozzle(large caliber nozzle preferred)
4.To switch on the power,the screen displays"---",it represents standby mode.(601D/603D)
5.To turn the temperature switch as to set up the require temperature.To turn the airflow switch as set up the require airflow.
6.To hold the handle,so the equipment begins to heat .To adjust the revolving switch of airflow in order to select suitable airflow in order to select suitable airflow,and begin to operate normally while the temperature is stable.
7.To put back the handle on the holder after the work,mean while the unsoldering equipment switch for heating element mode automatically.while the temperature is lower than 100°C,the screen display"---".it stands for switching for heating to standby mode,and after the temperature of Heating element is less than 70°C,the equipment is on standby.
8.To switch off the power and unplug if there is no operation for a long period of time.
