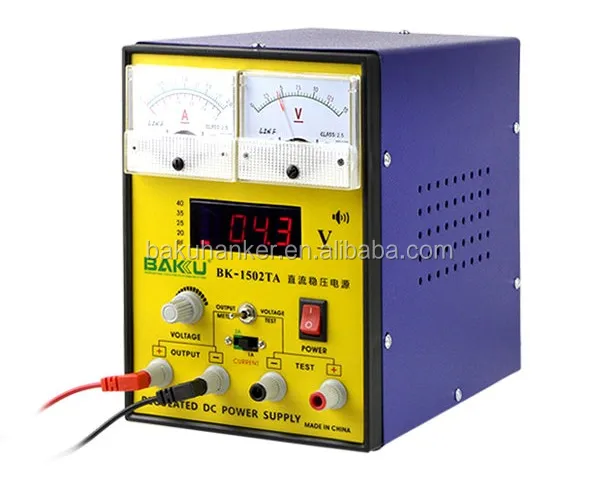

Hot selling BAKU BK-1502TA switching digital dc power supply for mobile phone repair
| Model | BK-1502TA |
| The power supply voltage | 220V±10%50Hz |
| Working conditions | temperature: - 10 ℃ -40 ℃ ,humidity: < 90% |
| The storage conditions | temperature: - 20 ℃ -40 ℃, humidity: < 80% |
| The output voltage | 0-15 v |
| Load stability | <0.01±2mV |
| Recovery time | <100us |
| Ripple noise | <1mVRms |
| Temperature coefficient | <300 PPM / ℃ |
| The starting Protection current | 10% nominal value |
Operation Methods
1) Plug in the power plug, switch it to the "ON" position.
2) Adjust "VOLAGE" knob to position where the output voltage needed, the left two terminal output voltage you need.
3) Switch toggle to "voltage Display" in the middle, the digital meter display is the measured voltage .
4) Switch toggle to "voltage TEST" in the middle, the digital meter display is the TEST the voltage, the voltage is measured by the right of the two terminal (TEST) input.
5) Mobile phone RF signal measurement: the phone is in a state of emission, the RF lights will be flashing on the instrument panel.
Attention
1) Input ac voltage: 220V±10% 50Hz.
2) Insulation: do not use in over 40 ℃ environment temperature or relative humidity is over 90% .

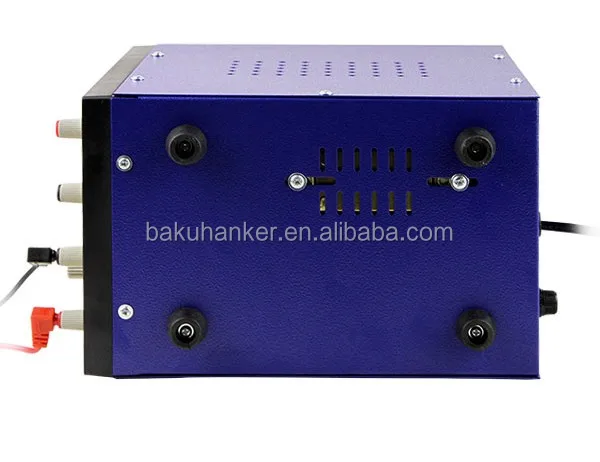

It's better to leave enough space to use heat at the back of the instrument ,please don't touch the high power tube has been used for a long time .
3) The output voltage overshoot restrictions: the output voltage should be less than the preset value when turned on the power supply.
1. What is the minimum order quantity (MOQ) for products?
Generally according to the requirements of customers, no matter how many we can accept.
2. How long is the product warranty?
We guarantee 3 months for domestic customers; and 3 months for oversea customers but they bear the freight fee or repair some accessories for secondary purchase.
3. What's the advantage of your products?
A: 11 years of experience in production and sales, with independent brand complete variety of products of repair industry.
4. Are you accept OEM order?
Yes, of course, but we have quantity requirement, please feel free to contact our staff for details.
5. What about delivery day?
For sample with existing products, delivery within 3 days; and for customer order products in great quantity, 7 to 15 days. Generally 20-30 days for customer OEM products.
6. How about terms of payment?
A: T/T, PayPal, Western Union, Money Gram, L/C, etc.
