BAKU Brand Hot Air SMD 3 In 1infrared Rework Soldering Station BK 603A

FOB Reference Price:Get Latest Price
  • 1 - 99
    US $45.99
  • 100 - 499
    US $39.99
  • >=500
    US $35.00
Supply Ability:
20000 Piece/Pieces per Week
Port:
Guangdong
Report Suspicious Activity
Overview
Quick Details
Type:
Soldering Station
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BAKU
Model Number:
BK 603A
Dimensions:
32*27*19CM
Weight:
4.73kg
Usage:
all kinds of electronic industry
Certification:
CE,FCC,TUV
After-sales Service Provided:
No overseas service provided
Product Name:
3 in 1 Rework Station
Rated Voltage:
220V
Rated Output Power:
450W
Air Volume:
120L/M(MAX)
Merit:
infrared bga rework station
Blower:
one
Air temperature range:
150℃~500℃
Soldering iron temp:
200℃~480℃
handle length(with cable):
120cm
type:
bga rework
Packaging & Delivery
Packaging Details
4 pcs/carton , 3 in 1 Rework Station
carton size:57.5*34*40cm
Delivery Time
5 days to 7 days after get the 30% deposit

BAKU Brand Hot Air SMD 3 In 1infrared Rework Soldering Station BK 603A

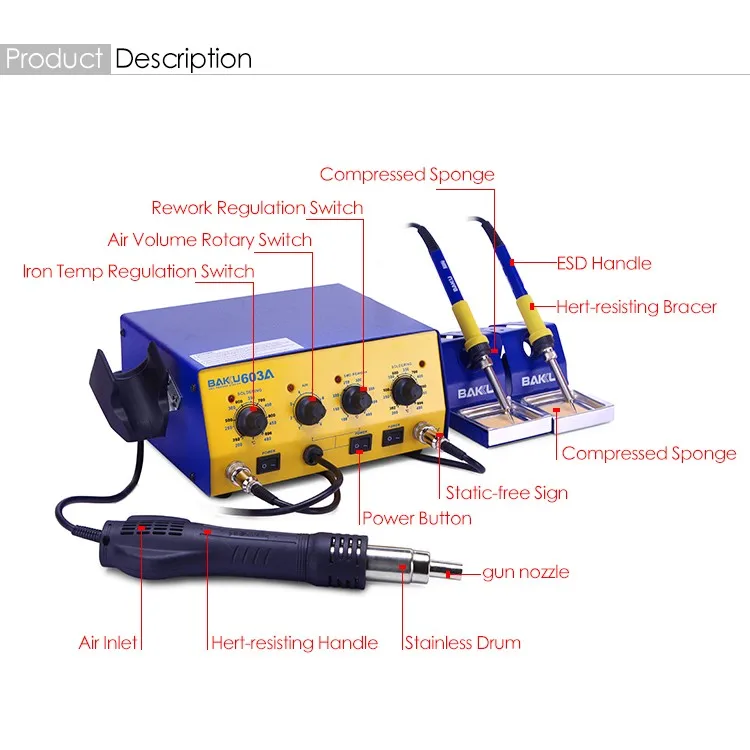

Product Description
Model601A603A601D603D
Power750W800W750W800W
Power ComsumptionLED indicator lightLED digital display
Blower FanBrushless Fan
Amount of Wind120L/min(MAX)
Temperature Range 100°C-450°C
Handle length120cm
Size(CM)10*14.2*17.3
Weight1.74kg
Noises<45db









 Features



1.The products adopt closed loop of transducer with Mcu intelligent drive,Digital LED display and High-power.The temperature turn up is very fast and stable ,it is good for lead free work too.

2.The air flow can be adjustable,and air blowing is big and gentle,  plastic components won't be deformed .Such as buzzer and external interface of mobile phone

3.It is inductance in the handle.will be quickly to work when you take the handle,when the handle is return to the shelf,the machine will Automatic stopage.

4.Automatic to blow cool air to safe the heating.Temperature rapidly rises,and it can reach to the setting temperature only within 3 or 5 seconds.

5.Safety remove BGA-IC,Keep pins intact.Blowing PCB will not make it blister.









Operation  Instruction



1.To put the unsoldering equipment ready,and leave handle on the holder

2.To connect the power

3.To set the best nozzle(large caliber nozzle preferred)

4.To switch on the power,the screen displays"---",it represents standby mode.(601D/603D)

5.To turn the temperature switch as to set up the require temperature.To turn the airflow switch as set up the require airflow.

6.To hold the handle,so the equipment begins to heat .To adjust the revolving switch of airflow in order to select suitable airflow in order to select suitable airflow,and begin to operate normally while the temperature is stable.

7.To put back the handle on the holder after the work,mean while the unsoldering equipment switch for heating element mode automatically.while the temperature is lower than 100°C,the screen display"---".it stands for switching for heating to standby mode,and after the temperature of Heating element is less than 70°C,the equipment is on standby.

8.To switch off the power and unplug if there is no operation for a long period of time.
